Quick Details

  • Type: Automatic Door Operators
  • Place of Origin: Jiangxi, China (Mainland)
  • Brand Name: OEM
  • Model Number: BS-VI
  • Item Name: Professional Manufacture Automatic Gate Opener
  • Certificates & Warranty: CE,ISO9000
  • power supply: AC220V/50HZ AC110V/60HZ
  • motor power: DC24V/100W
  • Power supply: 110VAC 60Hz
  • Motor Power: 24DC/80W 250WAC
  • Motor rotational speed: 1800r/min
  • Reduce ratio: 42:1
  • Max weight of gate: 600kg,800kg

Packaging & Delivery

Packaging Details Carton or Wooden
Delivery Time According to your order

BS VI Professional Manufacture Automatic Gate Opener

Product Description




 Sliding Gate Operator Specification:



1)This type of remote door opener is our new developed product Integrated Mechanical and electrical, ie, with PCB inside and this is an innovative sliding gate operator, which Low stand-by consumption is the best design for solar charging.

2)One touch easy programing,The contronl system learns the open and closing limit automatically.

3)Electronic soft -start, ensures the motor stars steadily and smoothly.

4)Digital display makes Easy Programming.

5)Release key for power failure and looking the operator's cover.



6)Intelligent terminals for photocell, alarm lamp,external receiver, etc.

7)Easy to install and maintain,Optional wire control remote control.

8)Mechanical limit switch (spring limit switch) or magnetic limit switch is optional.

9)Optional line control or remote control.



Technical Data

  Power   Supply:

 110VAC   60HZ

 Motor  Supply

 24DC/80W 250WAC

 Motor rotational speed:

 1800 r/min

 Max Door weight:

 600Kg/800Kg

  Reduce   Ratio

 42:1





BS-VI Features



A.Magnetic Limit Switch .

B.Aluminum Alloy Gear Box.

C.Release Key For Power Failure.

D.Protection Class IP55.

E.Operating Environment Temperature -20℃~+50℃.



 F.Built in control panel .

G.Wall switch,photocell,flash lamp.
H.Auto-closing is available,time delay is adjustable.
J.24VDC back-upbattery can be input.

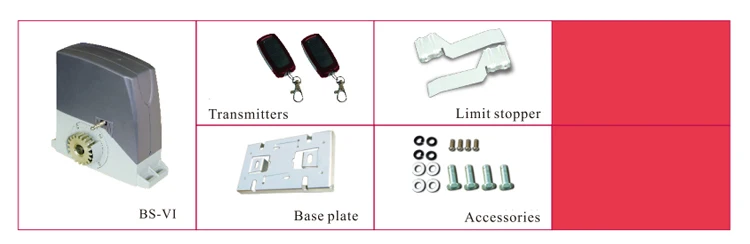

Complete Kit

Company Information

Bisen Smart Access co., Ltd. was established in 1999. This is the biggest professional manufacturer for automatic access equipment. Bisen has been awarded more than 200 patents in China and Europe.



In 2015, Bisen built the new factory and invested in new facilities , Steel plate flexible product line, Welding Robots, Automatic spraying equipment, to improve the quality control and capacity.

BAISHENG GATE & DOOR AUTOMATION CO.,LTD Located in Nanchang Minying Science & Technology Park, Nanchang city, China. The production area is 40,000 square metres.



We are the biggest Professional manufacturer for Gate and Door Automatic Operators in China. More than 50 experienced engineers are engaged in R & D,and more than 500 employees are working in manufacture and service.



We can provide quality ODM/OEM service for customers in the world.BISEN SMART ACCESS CO.,LTD. was established in 1999, Located in Nanchang Minying Science & Technology Park, Nanchang city, China. The production area is 40,000 square metres.



Our main products:Auto-barrier gate,Garage door opener,Roll up door opener, Swing gate opener, Sliding gate opener, Industrial sectional door opener,Anti-terrorism Road Blocker,Hydraulic Bollard,Pedestrian Gate,Entrance control system etc.



1.Our factory covers more than30,000 square meter .

2.We specialize in Automatic door& gate opener since 1998.

3.Our main products are traffic barrier,garage door opener,swing gate operator, sliding gate opener,industrial sectional door operator ,road blocker ,bollard and so on.

4.The certificate we got: CE,ISO9001:2008

5.We have formed 10 production lines.



6.Exhibition we attend: a)The U.S. Guardrail Exhibition , b)Chinese Commodity Fair in Jordan ,c)IDA Automatic Door Show ,d) Italian Building Material Exhibition ,e) Polish Building Materials Exhibition ,f) The Canton Fair

7.Our big markets: main customers are from Europe ,the USA,Canada,Russia,Mexico ,middle east ,South Africa etc.

8.ODM/OEM service is welcome.



Packaging & Shipping


Packaging Details: standard export carton or wooden case

Delivery Details: 3~7 working days upon receipt of your deposit .

Shipping:If you do not have forwarder,we can arrange  shipping by express,air and sea

Full set: Packing: 1 set/1 carton, and then 36 cartons/ pallet

Shipping:  8-10 days after receiving your prepayments

Exhibitions

Certifications

Our Services

1. OEM Manufacturing welcome: Product, Package...

2. MOQ: 1 piece

3. Warranty:1 year

4. We will reply you for your inquiry in 24 hours.

We have our own overseas service department and professional technology team, can meet

different requirements of customers in the shortest time and supply the best service when you back home.

Putting customer first is our principle all the time!



 FAG



Trouble

Cause

Shooting

Motor can not work

1,No power supply

2,Break fuse

3,Surpass load

1,Check power supply

2,Change fuse

3,Check if any barrier on the track

Can open but can not close

1,Photocell is not connected properly

2,Photocell beam is block off

3,Photocell is broken

1,Connect the photocell

2,Clear out obstacle

3,Change a new device

Can open (close) but

can not close (open)

1,Position of limit switch is not correct

2,Limit switch is damaged

1,Adjust position

2,Change limit switch

Can not locate accurately

1,Distance of limit switch is too large

2,Limit switch is wrong

3,Magnetic-stells

  position is wrong

1,Adjust position of limit switch

2,Change limit switch

3,Re-adjust the position

Release device is doesnt work

1,Operating handle is broken

2,Worm gears are jammed

1,Change the handle

2,Rotate the pinion

Push the OPEN button

but the gate close

Whether +MOTOR- wires

are connected wrong

Connect correctly according

 to wiring diagram

Motor can turn but can not work

1,Compression spring of clutch is dead

2,Gear box is released

1,Change the spring

2,Couple the worm gear
