Quick Details

  • Type: Gate Operators
  • Place of Origin: Jiangxi, China (Mainland)
  • Brand Name: BISEN
  • Model Number: BS-IZ-II
  • Item name: 1200kg Magnets limit eletric Sliding door operator
  • Certificates & Warranty: CE,ISO9000
  • Power supply: AC220V 450W /370W
  • Motor rotational speed: 1400r/min
  • Output rotational speed: 46.7r/min
  • W. T: 16Kg
  • Gear Box material: Aluminum
  • Capacitor: 25uF

Packaging & Delivery

Packaging Details standard export carton then wooden pallet(36 sets per pallet)
Delivery Time 15~25days after receiving your prepayments
CE  Certification Magnets Limit Eletric Sliding Door Operator
Product Description




       Sliding Gate Operator specification:



1)This type of remote door opener is our new developed product Integrated Mechanical and electrical, ie, with PCB inside and this is an innovative sliding gate operator, which Low stand-by consumption is the best design for solar charging.

2)One touch easy programing,The contronl system learns the open and closing limit automatically.

3)Electronic soft -start, ensures the motor stars steadily and smoothly.

4)Digital display makes Easy Programming.

5)Release key for power failure and looking the operator's cover.



6)Intelligent terminals for photocell, alarm lamp,external receiver, etc.

7)Asy to install and maintain,Optional wire control remote control.

8)Mechanical limit switch (spring limit switch) or magnetic limit switch is optional.

9)Release key for power failure.

10)Optional line control or remote control.



BS-IZ FEATURES


A.Magnetic limit switch or Mechanical limit switch

B.Aluminum alloy Gear Box.

C.Thermal protection at 125℃ built in motor winding.

D.In case of power failure,the gate can be opened and closed manually after release cluth.

E.Built-in control board.



F.Proection class IP55.

G.Operating environment Temperature: -20℃~+50℃

H.Terminals for Push button,Photocell,Flash lamp.

J.Auto-closing is available,time delay is adjustable.







Property List





Motor power:AC220V 370WAC220V 450W
Frequency:50(60)Hz50(60)Hz
W.T(kg)16kg16kg
Motor rotational speed:1400 r/min1400 r/min
Output rotational speed:46 r/min46 r/min
Gate max weight:1200kg1500kg
Reduce ratio:30:130:1
Gear Box material:Aluminum alloyAluminum alloy

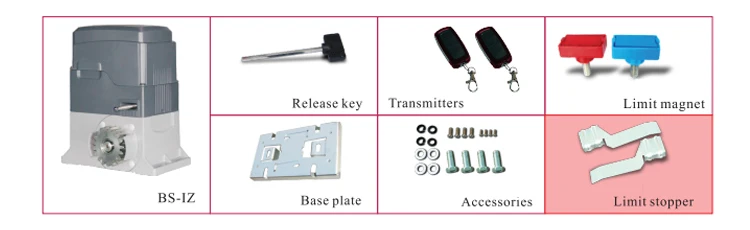

Complete Kit

Company Information

Bisen Smart Access co., Ltd. was established in 1999. This is the biggest professional manufacturer for automatic access equipment. Bisen has been awarded more than 200 patents in China and Europe.



In 2015, Bisen built the new factory and invested in new facilities , Steel plate flexible product line, Welding Robots, Automatic spraying equipment, to improve the quality control and capacity.

BAISHENG GATE & DOOR AUTOMATION CO.,LTD Located in Nanchang Minying Science & Technology Park, Nanchang city, China. The production area is 40,000 square metres.



We are the biggest Professional manufacturer for Gate and Door Automatic Operators in China. More than 50 experienced engineers are engaged in R & D,and more than 500 employees are working in manufacture and service.



We can provide quality ODM/OEM service for customers in the world.BISEN SMART ACCESS CO.,LTD. was established in 1999, Located in Nanchang Minying Science & Technology Park, Nanchang city, China. The production area is 40,000 square metres.



Our main products:Auto-barrier gate,Garage door opener,Roll up door opener, Swing gate opener, Sliding gate opener, Industrial sectional door opener,Anti-terrorism Road Blocker,Hydraulic Bollard,Pedestrian Gate,Entrance control system etc.



1.Our factory covers more than30,000 square meter .

2.We specialize in Automatic door& gate opener since 1998.

3.Our main products are traffic barrier,garage door opener,swing gate operator, sliding gate opener,industrial sectional door operator ,road blocker ,bollard and so on.

4.The certificate we got: CE,ISO9001:2008

5.We have formed 10 production lines.



6.Exhibition we attend:

a)The U.S. Guardrail Exhibition ,

b)Chinese Commodity Fair in Jordan ,

c)IDA Automatic Door Show ,

d) Italian Building Material Exhibition ,

e) Polish Building Materials Exhibition ,

f) The Canton Fair.

7.Our big markets: main customers are from Europe ,the USA,Canada,Russia,Mexico ,middle east ,South Africa etc.

8.ODM/OEM service is welcome.

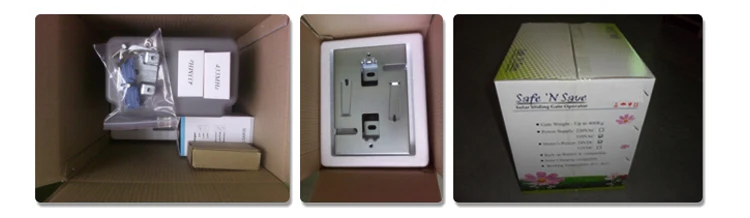

Packaging & Shipping

Packaging Details: standard export carton or wooden case.

Delivery Details: 3~7 working days upon receipt of your deposit .

Shipping:If you do not have forwarder,we can arrange  shipping by express,air and sea.

Full set: 1 260W motor with built-incontrol board ,2 remote controls, mounting accessories 1pcs in 1 carton box, then 27 sets in one wooden pallet.



Exhibitions

Certifications

Our Services

1. OEM Manufacturing welcome: Product, Package...

2. MOQ: 1 piece

3. Warranty:1 year

4. We will reply you for your inquiry in 24 hours.

We have our own overseas service department and professional technology team, can meet

different requirements of customers in the shortest time and supply the best service when you back home.

Putting customer first is our principle all the time!




FAQ



Trouble

Cause

Shooting

Motor can not work

1,No power supply

2,Break fuse

3,Surpass load

1,Check power supply

2,Change fuse

3,Check if any barrier on the track

Can open but can not close

1,Photocell is not connected properly

2,Photocell beam is block off

3,Photocell is broken

1,Connect the photocell

2,Clear out obstacle

3,Change a new device

Can open (close) but can not close (open)

1,Position of limit switch is not correct

2,Limit switch is damaged

1,Adjust position

2,Change limit switch

Can not locate accurately

1,Distance of limit switch is too large

2,Limit switch is wrong

3,Magnetic-stells

  position is wrong

1,Adjust position of limit switch

2,Change limit switch

3,Re-adjust the position

Release device is doesnt work

1,Operating handle is broken

2,Worm gears are jammed

1,Change the handle

2,Rotate the pinion

Push the OPEN button but the gate close

Whether +MOTOR- wires are connected wrong

Connect correctly according to wiring diagram

Motor can turn but can not work

1,Compression spring of clutch is dead

2,Gear box is released

1,Change the spring

2,Couple the worm gear



Thank you for your concern. Related business consulting you can by telephone, fax, or E-mail contact with us.

China Mainland Service Hotline: 400-119-7707

Tel: 0086-791-88196213

Fax: 0086-791-88196213



Contact person: Shirley Yuan

Mobile: +86 18970069773

Address: 169 MinAn Road, Minying Science & Technology Park, Nanchang, Jiangxi, China. (Google map)

Zip:330029

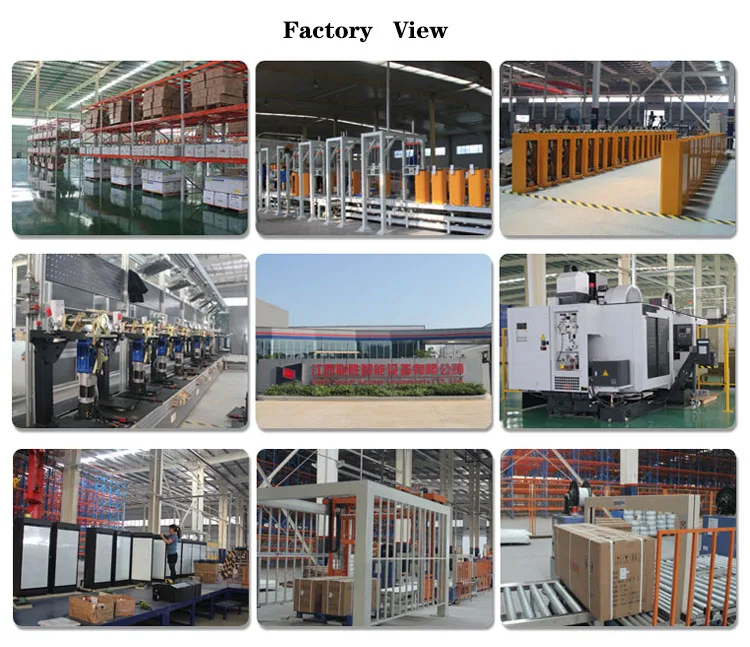

Welcome To Visit Our Factory!
